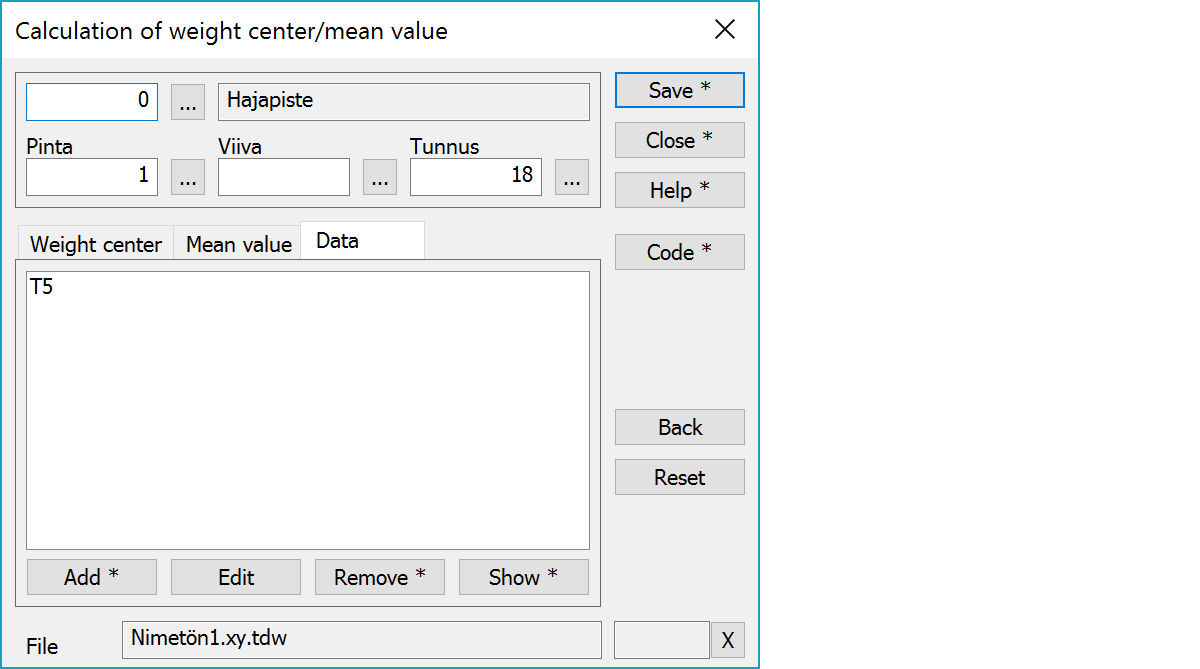

Calculate weight center Calculate weight centerCalculates weight center or mean value of the given point group.
Weight center is the gravity center of the given points. Notice, that the points must be given in a right order - either clockwise or counter clockwise. Mean value calculates the center point of the given points. Points can be given in any order.
Upper part fields display object type and three freely selectable attributes.
List of object attributes not displayed in the above fields.
Saves the current point. With the Shift-key resets function after saving. With the Ctrl-key all points used for calculation are saved.
Activates the data copying from another object. The other object containing data is pointed by the mouse. By default only the object code is copied. With the Shift-key all attributes are copied including the line number. New points are then added to that line.
Removes last point from the group.
Resets the function.
Active file element receiving saved points.
Displays current edit mode (move, rotate, add, etc.). The X button quits the mode and returns to the normal state.
CheckDuplicate special setting in Settings/Start Program defines whether active file is checked for duplicate points.
There are some special settings related to this function.
Settings affecting edit and calculation function behavior.
Defines which attributes are displayed first in the list. By default T1,T2,T3,T4,T5.
See also: Using special settings
