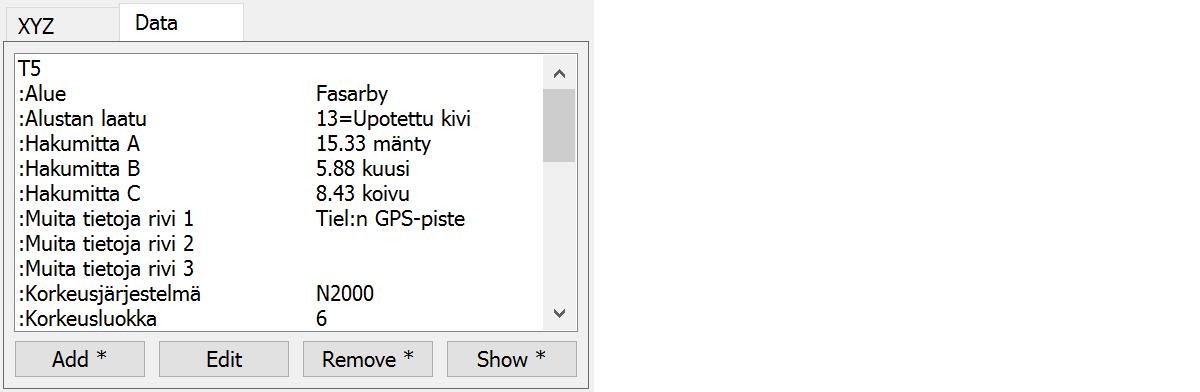

The list shows edited object's attributes. Attribute values are displayed in their own column and moving the mouse over the attribute line opens popup tip displaying the attribute id and full value. Attributes displayed at the top fields are not repeated in this list.
Special setting TopDataList defines which attributes are displayed in the list first. By default this settings is T1,T2,T3,T4,T5 making the list display first attribute T5, which is not visible in the top fields. After that attributes defined in the code file are displayed and finally all other object's attributes. Attributes defined in the code file have colon prefix in their names.
The tab page header displays the amount of real attributes in parenthesis.
Adds new attribute. With the Shift-key makes copy of the selected attribute.
Edits the selected attribute. Works also with the list item double click.
Removes the selected attribute. Works also with the Delete-key. With the Shift-key asks confirmation and removes all attributes.
Shows the selected attribute file. Image files are displayed in the attachment window and other files in the program registered for their extension. With the Shift-key shows all attachment attributes in the attachment window.
