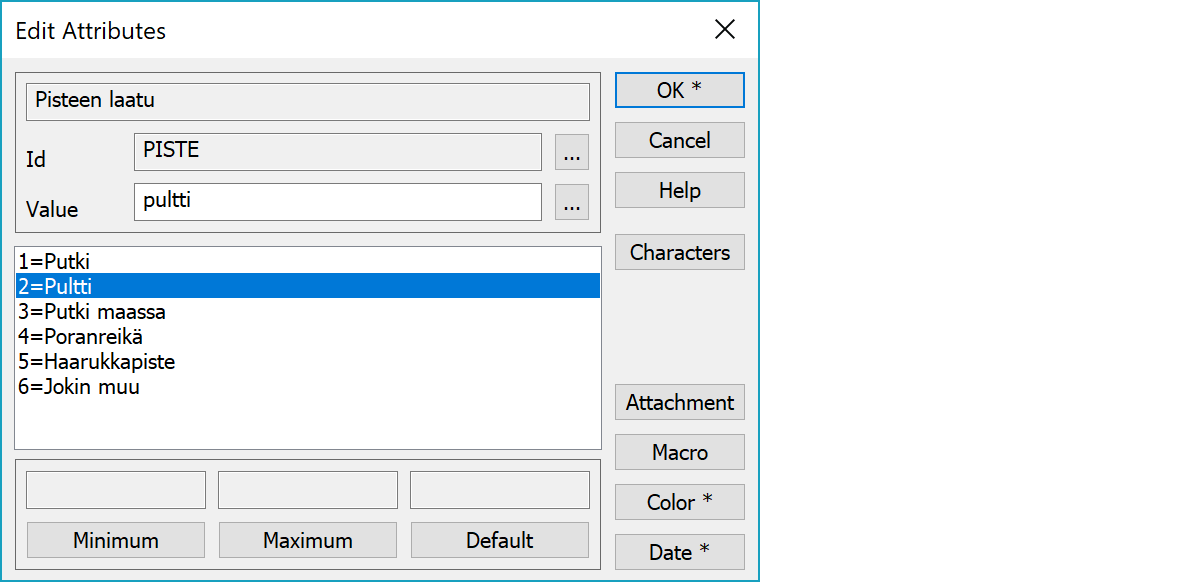

Editing of individual attributes. Displays all the values available for one attribute. If this is a free attribute (all values accepted), you can type in the required value. Attribute name at the top comes from the code file.
If macro is given as an attribute value, it is converted to real value by default. With the Shift-key macro is stored directly as an attribute value.
Attribute id (abbreviation). E.g. this id is used in the Point view or title file. Changing the id is allowed only for attributes not defined in the code file.
Browse button opens code file attribute list for selection. By default common attribute list is used. With the Shift-key code specific attribute list is used and with the Ctrl-key system code file common attribute list is used.
Attribute value and list of allowed values. You can type in any value, if that is allowed in the code file.
Browse button opens code file attribute definition for editing.
Minimum, maximum and default values will be shown if they are defined in the code file. Default values can be added to a group of points using Attribute editing.
Opens selection list for special characters and constant texts. The list is common selection list, where user can add new texts. Selected text is inserted to the cursor position.
Attachment file browsing for attribute value.
Macro selection for attribute value.
Color selection for attribute value. Button opens either color table or RGB selection depending on the field value. With the Shift-key browsing can be forced to the RGB selection or with the Ctrl-key to the color table.
Date selection for attribute value. With the Shift-key gets today as a value and with the Ctrl-key gets current date and time as an ISO standard timestamp.
