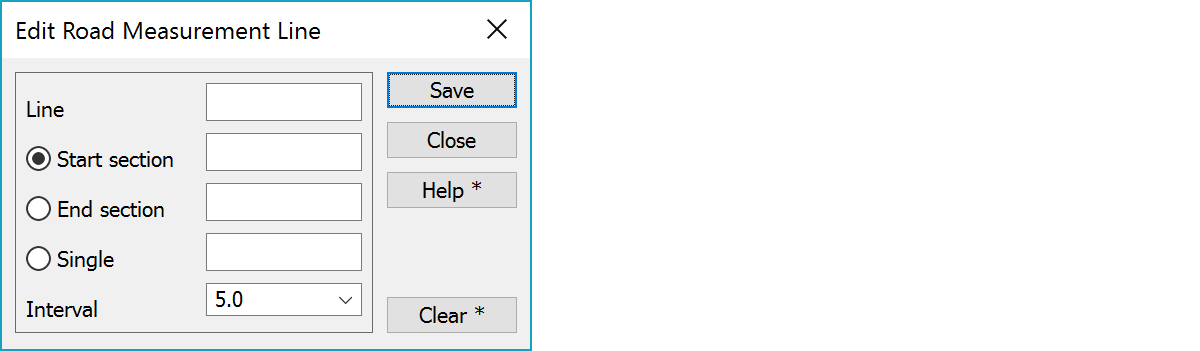

Edit road measurement line Edit road measurement lineTo edit the section interval in given areas. Active element or last measurement line in element list is activated automatically. Calculation is based on horizontal alignment to get the full accuracy also in arcs.
Measurement line number.
The starting and final chainage points can be given manually or with the mouse. Mouse coordinates are rounded to the nearest chainage value. If no chainage is given, the first and last chainage points of the measurement line will be used.
Adds single new section to the position pointed with mouse. Position is rounded according the Interval setting. Several sections can be added by using different search methods.
Section interval to be used between the start and end point or single section rounding. Given interval is cleared before calculation.
Clears given interval or single section. If only start is given, the line is cleared forward from it and if only end is given, the line is cleared backwards from it. If both are missing, the whole line is cleared. With the Shift-key both values and the whole line are cleared.
See also:
There are some special settings related to this function.
A comma separated list of section intervals in selection list.
Section marker line length in meters. If the value is negative, the line is drawn to both sides of the measurement line.
