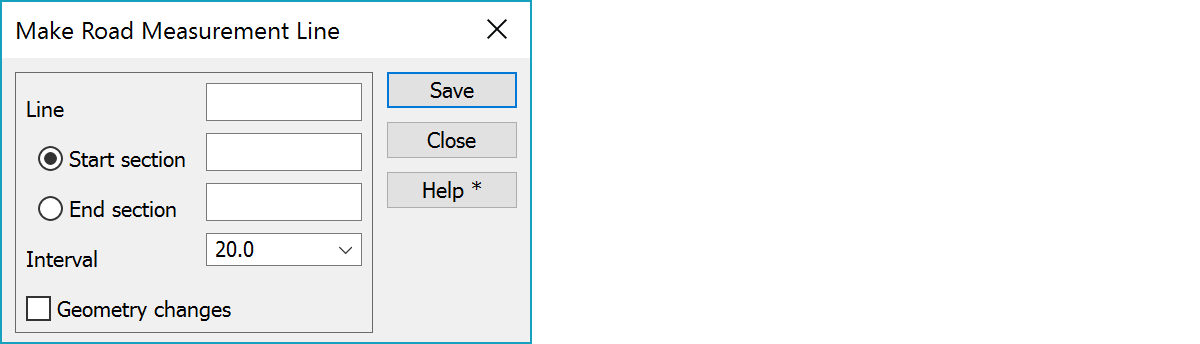

Make road measurement line

To create a road measurement line using a road file (horizontal alignment). Line points will get height from the vertical alignment and code will be set to 9070 to control the color and line type in drawing.

Line

Measurement line number.

Start, End

The starting and final chainage points can be given manually or with the mouse. Mouse coordinates are rounded to the nearest chainage value. If no chainage is given, the first and last chainage points of the measurement line will be used.

Interval

Chainage interval to be used between the start and end point.

Geometry changes

Measurement line will contain also all start/end sections of arc/chlotoid.

See also:

Edit road measurement line

Make measurement line

Special settings

There are some special settings related to this function.

IntervalList

A comma separated list of section intervals in selection list.

ML_width

Section marker line length in meters. If the value is negative, the line is drawn to both sides of the measurement line.

See also: Using special settings
