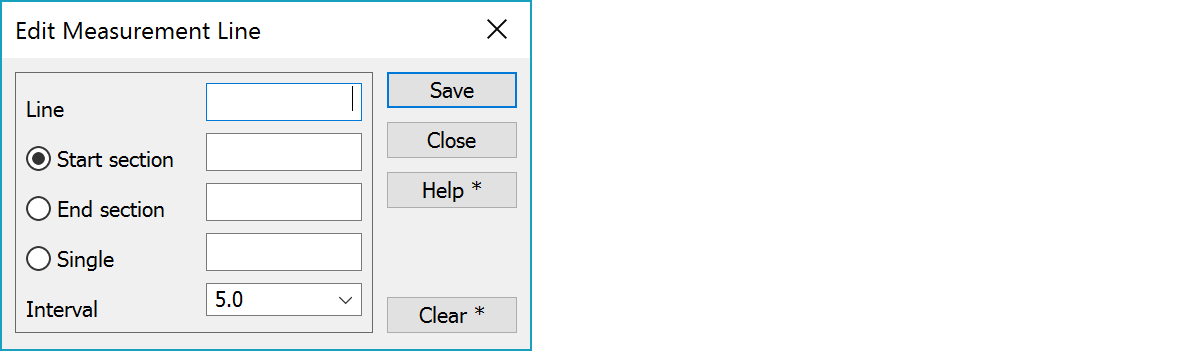

Edit measurement line Edit measurement lineTo change the chainage interval of an existing ML-file. When you start the function, an ML-file from the element list is activated. You cannot edit the points in the ML-file (add or delete) or move them, only change the interval.
Measurement line number.
The starting and final chainage points can be given manually or with the mouse. Mouse coordinates are rounded to the nearest chainage value. If no chainage is given, the first and last chainage points of the measurement line will be used.
Adds single new section to the position pointed with mouse. Position is rounded according the Interval setting. Several sections can be added by using different search methods.
Section interval to be used between the start and end point or single section rounding. Given interval is cleared before calculation.
Clears given interval or single section. If only start is given, the line is cleared forward from it and if only end is given, the line is cleared backwards from it. If both are missing, the whole line is cleared. With the Shift-key both values and the whole line are cleared.
See also:
There are some special settings related to this function.
A comma separated list of section intervals in selection list.
Section marker line length in meters. If the value is negative, the line is drawn to both sides of the measurement line.
