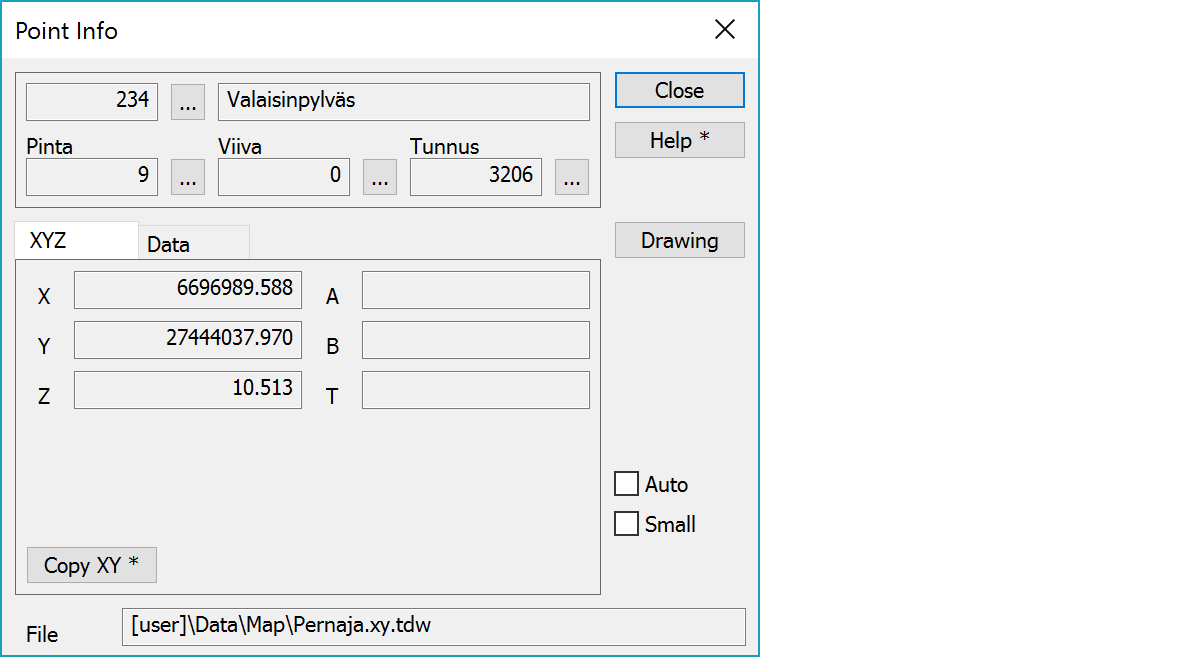

Point info Point infoThe point information appears when you click it with the mouse. With this function the values cannot be changed.
Upper part fields display object type and three freely selectable attributes.
Point coordinates and direction angle (T). Point A- and B-measures (section and offset) are displayed if available.
Copies coordinates to the clipboard as a comma separated text. By default copies only X and Y. With the Shift-key the Z is also copied. With the Ctrl-key XY-coordinate order is swapped. With the Alt-key decimal separator comes from system settings and field separator is tabulator. This format can be pasted directly to Excel columns as numeric values.
Opens drawing data info. Number of defined drawing data items is displayed in parenthesis after button label.
Opens this function, if no other edit dialog is yet displayed for the selected point. This works only when the search method is Nearest point.
Uses smaller version of the dialog.
The file element where the object belongs.
There are some special settings related to this function.
Settings affecting edit and calculation function behavior.
Defines which attributes are displayed first in the list. By default T1,T2,T3,T4,T5.
See also: Using special settings
