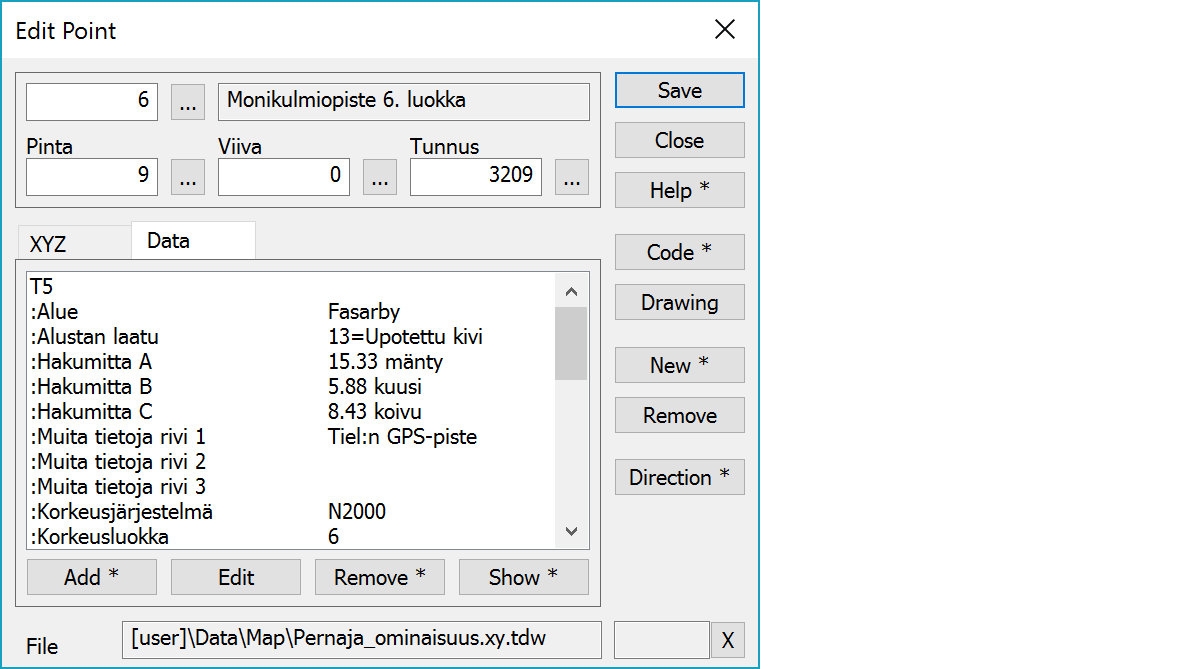

Edit point Edit pointPoint editing. Can be used with single points, line points and profile points.
Upper part fields display object type and three freely selectable attributes.
List of object attributes not displayed in the above fields.
Activates data copying from another object. Method Nearest point copies data from the nearest point and method Mouse from the nearest line. By default only the object code is copied. With the Shift-key all attributes are copied.
Opens drawing data editing. Number of defined drawing data items is displayed in parenthesis after button label. With the Shift-key clears drawing data.
Creates new single point. With the Shift-key makes copy of the active point and activates the move mode.
Removes the active point. If the point is arc start or end, whole arc is removed. If the point belongs to the circle, whole circle is removed. With the Alt-key starts continuous remove mode. Objects pointed with the Alt-key are immediately removed.
Rotates through symbol angle values at 50 gon intervals. Changes direction with the Shift-key and uses 10 gon interval with the Ctrl-key.
The file element where the object belongs.
Displays current edit mode (move, rotate, add, etc.). The X button quits the edit mode and returns to the normal state. If no mode is active, it releases the current object.
There are some special settings related to this function.
Settings affecting edit and calculation function behavior.
Defines which attributes are displayed first in the list. By default T1,T2,T3,T4,T5.
See also: Using special settings
