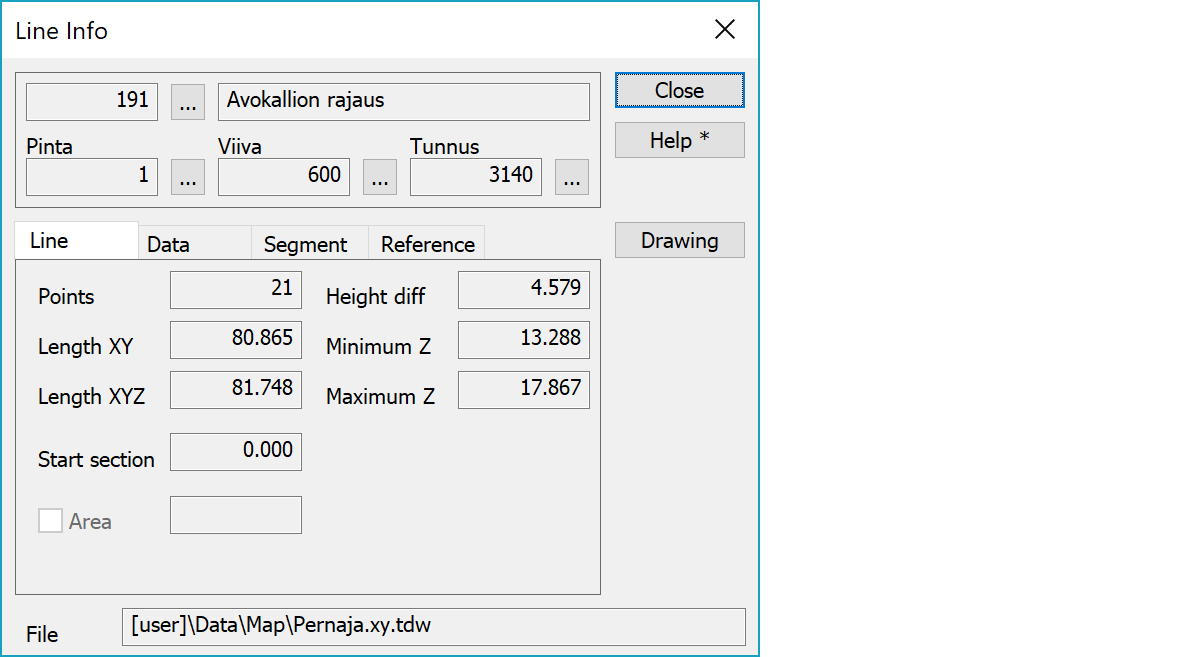

Line info Line infoDisplays the line information. Point line with the mouse and it will be highlighted. Line end points are merked with short vertical lines. The active line section is displayed with different color and arrow in the middle shows the line direction.
Line reference point is a location where line attributes are shown. If it is not defined, location halfway between first two line points is used by default. Reference point is not normally displayed and it cannot be picked by mouse. When viewing line info, it is displayed as a small circle.
Upper part fields display object type and three freely selectable attributes.
The number of points belonging to the line. If the line has curves, the midpoint will be counted as one point.
2D and 3D length of the line.
Minimum and maximum heights in the line and their difference.
Line start section for A-measure calculation.
Checkbox indicates that the line is closed area and value displays its area.
Opens drawing data info. Number of defined drawing data items is displayed in parenthesis after button label.
The file element where the object belongs.
There are some special settings related to this function.
Settings affecting edit and calculation function behavior.
Defines which attributes are displayed first in the list. By default T1,T2,T3,T4,T5.
See also: Using special settings
