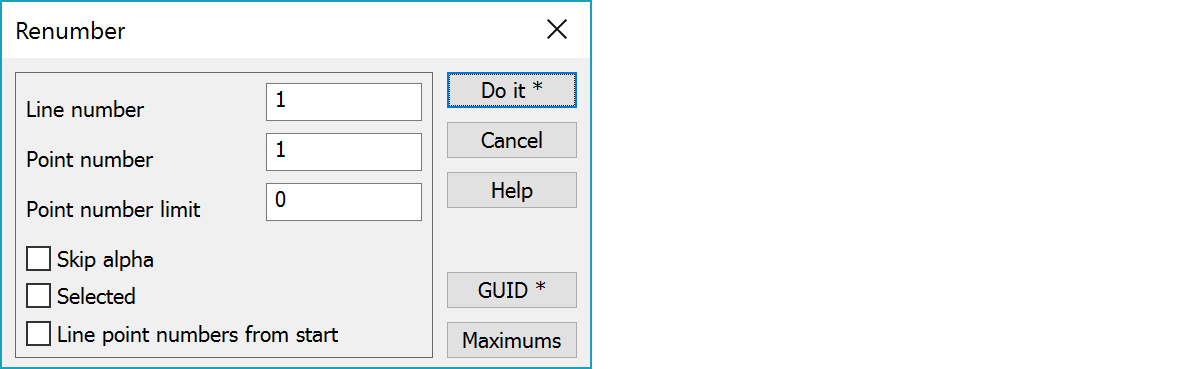

Renumber RenumberRenumbering the active file element. You can renumber the points and lines. This is useful when combining data. The function applies only to the active element. Give the code field values from where you want the renumbering to start.
With Shift-key function renames all points and lines, which have the same point number T4 or line number T2. This operation can be also done in converter field settings.
T2 field value, from where renumbering will start.
T4 field value, from where renumbering will start.
Point numbers larger than this will not be used for renumbering. It is possible, for example, to skip fixed points so they are not renumbered. If the value is 0 (zero) all will be renumbered.
If the field has letters, the point numbers can remain unchanged.
Renumbers only selected points of active file.
Starts every line numering from the same start value. Can also be set in converter field settings with control option @4.
Creates GUID attribute for active file. If active file is vector file, attributes are also created for all or selected points and lines in it. By default does not overwrite existing attributes. With the Shift-key overwrites old attributes.
GUID attribute is randomly generated hexadecimal string (e.g. e197a901-e8d0-46e4-935d-82b101f2c1b1) that uniquely defines object. They are used to form links between objects in InfraModel files and in control calculation.
To get the highest point and line numbers of the current active element.
See also: Coding system.
