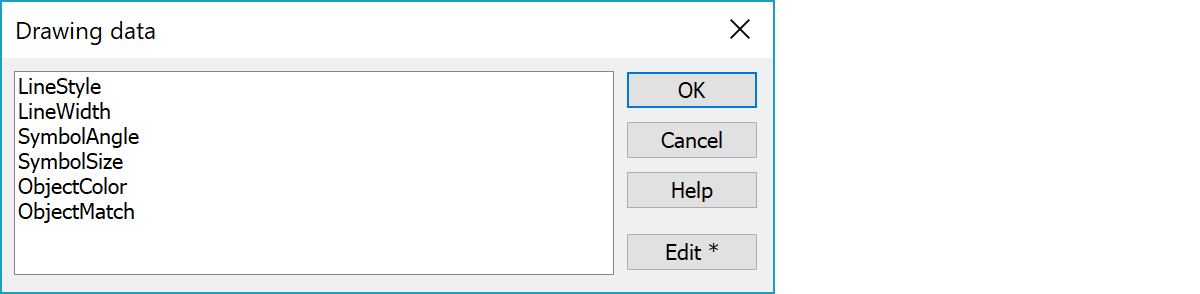

Drawing data

Drawing data read and write settings.

Edit

Opens selected field settings editing. With the Shift-key resets selected field settings.

LineStyle and LineWidth fields allow line drawing style and width writing or reading from attribute. Likewise, SymbolAngle and SymbolSize fields allow point angle and size writing or reading from attribute. With the Text format D, G and T definitions can also be used to read or write angles. ObjectColor field can be used to define object color as RGB-value.

Operation can be limited to only some objects with TextMatch definition. Available are all same rules as in attribute search (e.g. 822,866 or #COLOR=FF0000).
