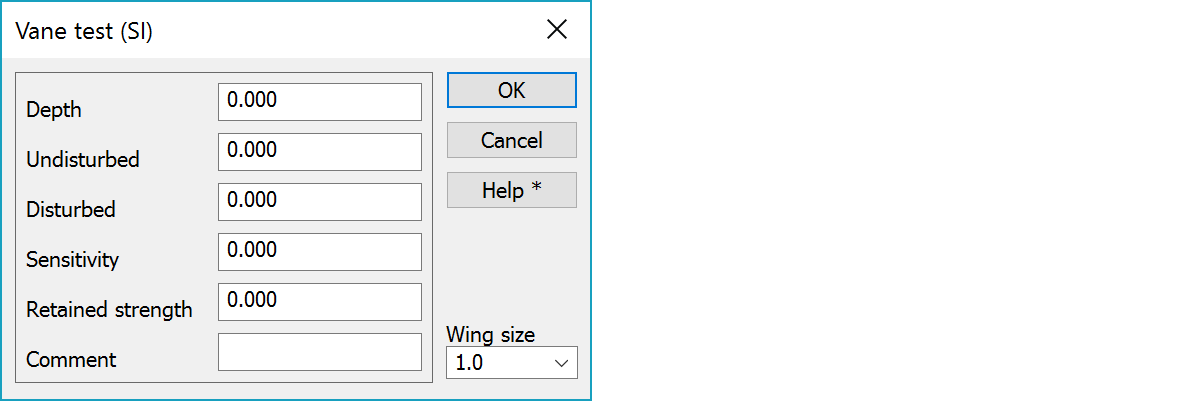

Vane test

Vane test data.

Depth

Depth of observation.

Undisturbed

A calculated value for undisturbed observation.

You can input two values and this function calculates the difference and multiplies with wing factor and calibration value (Special setting). Input values separated with minus-sign (eg. 12.3-16.5).

Disturbed

A calculated value for disturbed observation.

You can input two values and this function calculates the difference and multiplies with wing factor and calibration value (Special setting). Input values separated with minus-sign (eg. 12.3-16.5).

Sensitiveness

.

Soil type

Input soil type manually or select from list.

Soil types in list can be defined using Special settings in Sounding settings.

Comment

Free comment.

Wing size

Wing size.

Special settings

There are some special settings related to this function.

WingCalibration

Calibration value for the instrument.

Default=1.000

WingCalibrationList

List of calibration value to be shown in previous setting.

E.g.: WingCalibrationList=0.995,1.000,1.152

See also: Using special settings
