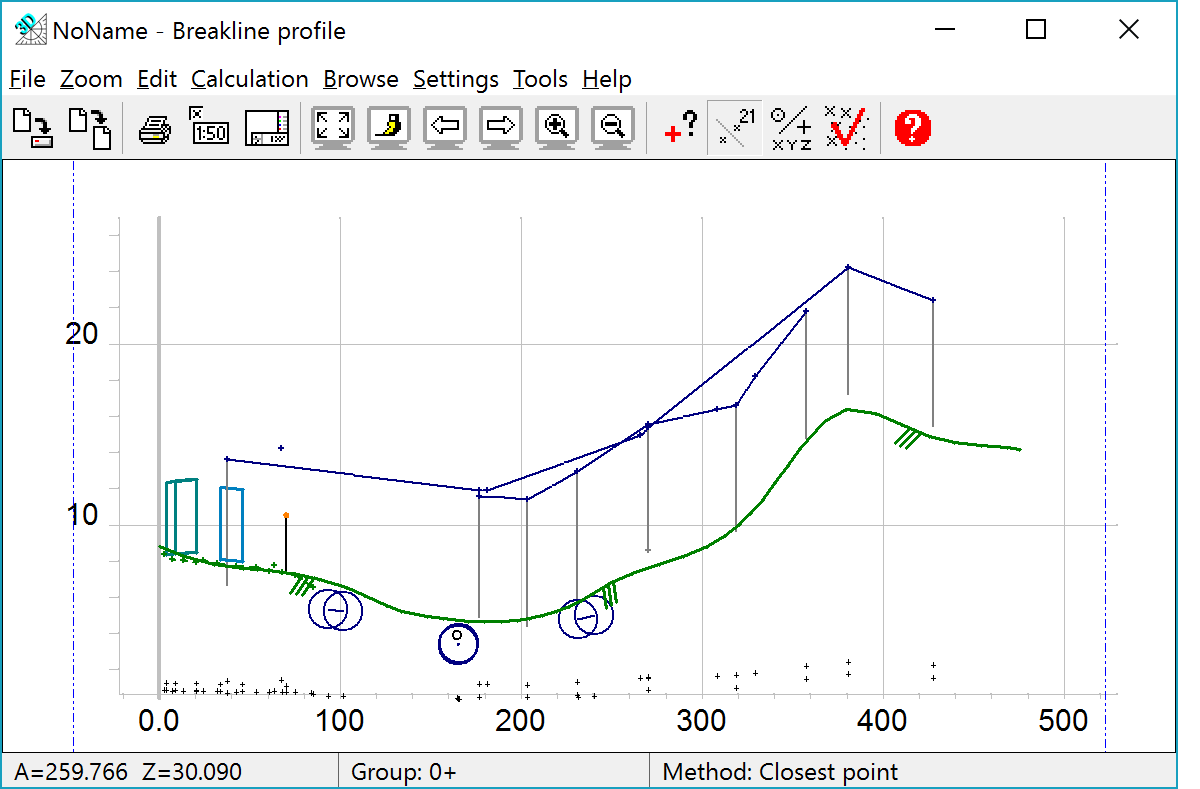

Breakline profile Breakline profileCalculates a profile from the breakline information. Surface 9 points and breakline section inside given offset are also shown in the window. If the element list contains terrain models, surface profiles are calculated also from them along the given breakline.
Show the line in the normal way. Field codes are copied from the points or breakline used. If you want to have a certain start section, set breakline start section in line editing. This affects also other functions like breakline calculation.
If the element list active file is a road alignment, the profile is projected to it. This is marked with the red text at the top of the window.
Copy to main window copies the profile to the main window element list.
Formats/Write writes file using Geonic-format.
See also: Cross section and profile window drawing.
