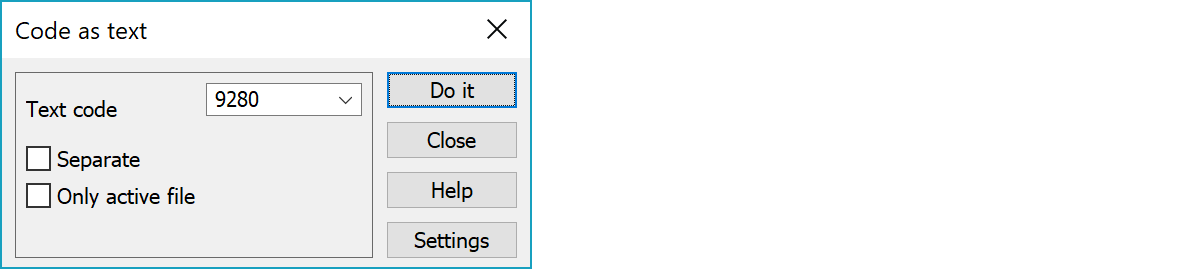

Code as text

Converts current point view code fields to texts. Many systems do not use point numbers at all. The only way to transfer certain information is to change its code to a text. Normally the texts can be transferred between the systems without any problems. The added texts can normally be edited with the text editing.

Text code

Code for created point texts. If this code contains definition %s or *, it is replaced by the point code. For example definition T%s creates text code T25 for point code 25.

Code list shows all codes given in font list of current code file.

Separate

Normally codes are stored as a single multiline text. However, some systems do not handle correctly multiline texts. This setting creates separate texts from each code to make it possible to transfer them to such systems. Text interval is calculated using current paper scale.

Only active file

Creates texts only from active file codes.

Settings

Opens point view settings, which determines what code fields are converted to texts and how. You can preview different options before making the actual conversion.
