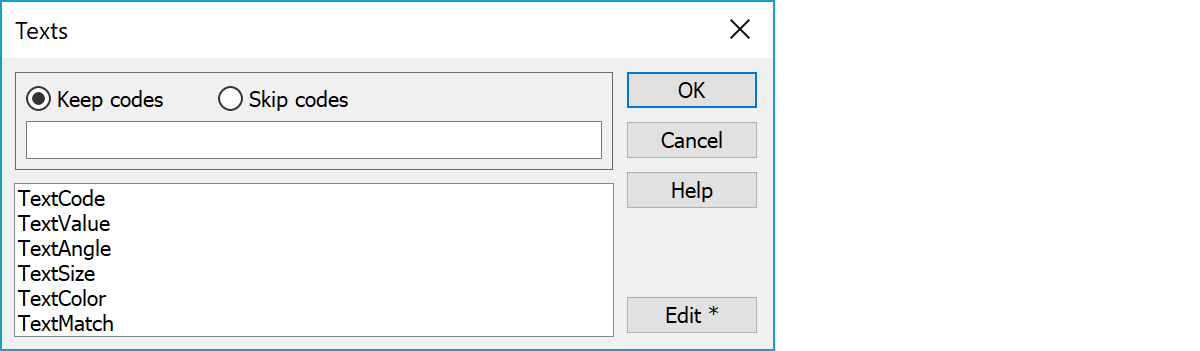

Text read and write settings.
Match rule for texts to keep or skip. Available are all same rules as in attribute search (e.g. 822,866 or #COLOR=FF0000).
Opens selected field settings editing. With the Shift-key resets selected field settings.
The TextValue definition in the list could contain attribute name, which is converter to text in reading. If the attribute is found from text point, its value is simply copied as text to TEXT-attribute. In case of single point, the point is moved to the text list and the attribute name is changed to normal text point TEXT-attribute. When writing, copies the text point TEXT-attribute to an another attribute with the given name.
TextCode, TextAngle, TextSize and TextColor definitions can be used to read and write text code, angle, size and color.
Operation can be limited to only some objects with TextMatch definition. Available are all same rules as in attribute search (e.g. 822,866 or #COLOR=FF0000).
