Show results

Comparison results can be shown graphically in screen or in text editor.

Graphics

Use settings for control measurement.

Picture 3. Differences of ship block in threedimensional view (YZ-error).

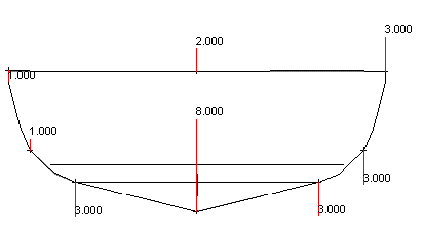

Picture 4. Difference of ship block seen from block end (Z-error only).

Results as text

To list the residuals use Output-function in control measurement.

   T4         X          Y      dX      dY      dZ    dXYZ
   15    93.000  -5001.000  -3.000  -1.000  -3.000   4.359
   16   107.000   5003.000   3.000   0.000  -3.000   4.243
   30   101.000      2.000  -4.000   2.000   2.000   4.899
  100   104.000      4.000  -4.000   4.000   8.000   9.798
  111    91.000  -6847.000  -3.000   2.000   1.000   3.742
  112    99.000   6855.000   4.000   3.000  -3.000   5.831
  117    92.000  -7747.000  -4.000  -4.000  -1.000   5.745
  118    93.000   7743.000  -2.000  -3.000   3.000   4.690
