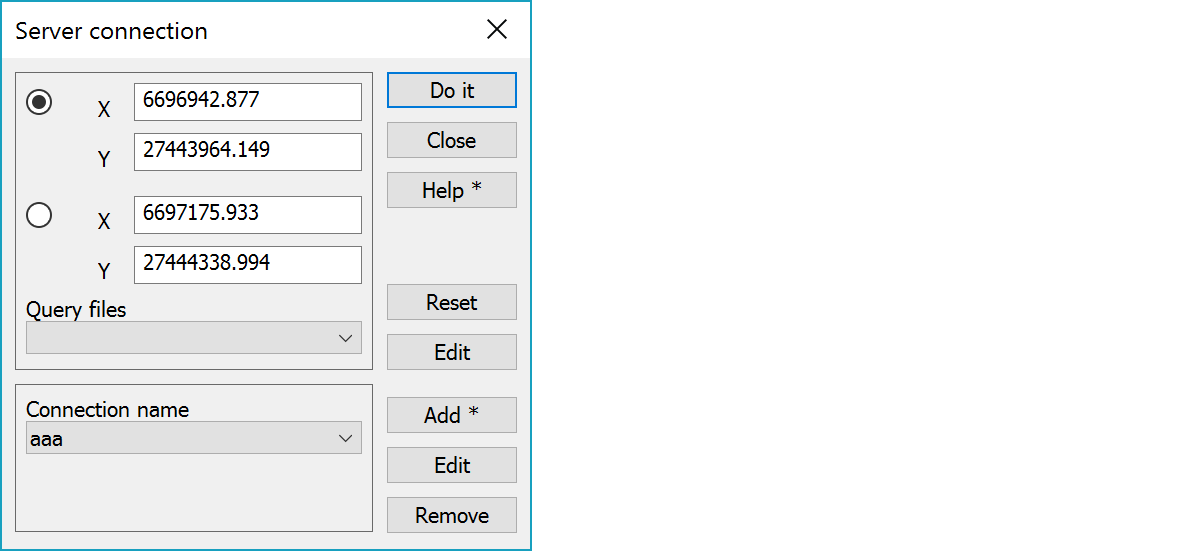

Server connection

Server connection is for reading data from a non-SQL-database through a common directory. 3D-Win will generate a SII-file with search criteria into a specific directory and the server scans this file. Server reads data from the database and writes it in an output file with predefined format.

3D-Win scans for this output file and then reads it in using the same predefined format.

The search criteria is a system/database specific file. Coordinate limits are appended to this file according to user selection. Predefined output file format can be freely selected and is dependent to the database used. Currently Fingis and Xcity/Xpipe connections are used.

You may define several different connections and select one as active connection from the list.

Fetch area (X, Y)

Corner coordinates of the rectangle to be used. Input manually or use mouse.

Reset

Clear the XY-rectangle.

Search criteria

A list of predefined files having search criteria.

Edit

Edit the selected search criteria file in editor.

Add

Add a new connection.

Edit

Modify settings for this server connection.

Delete

Delete selected connection from list.

Do it

Start the operation. If there already is a file, you’ll get a warning. Existing files can be deleted after confirmation. If the output file is empty, you’ll get a warning.

SII-file includes the search criteria. The first line defines the transfer file name. Special setting Flag has 2 as default value. You still need to have the first line in SII-file even as empty line. If you set Flag=4, SII-file can have only search criterias.

Haku useasta kannasta samalla kerralla:

Ohjaintiedostoon kantayhteyden nimi (#Xpipe) ja sen alle hakuehdot:

! Testitiedosto Serveryhteys
#Xpipe
P_JO_Kaikki
#Xcity
X_JO_Kaikki
2_KA_Kaikki
1_Karsittu_kantak

Special settings

There are some special settings related to this function.

BaseName

Server -connection default name.

Extension

Extension for output file.

Flag

Diverse settings.

1 Add User-name in first line of DAT-file. E.g. C:\3D\user.dat -> C:\3D\user_mikko.dat

2 rewrite last line

4 no_header

64 Tyresö

LogFile

512 creates a log file in settings directory named server_log.txt. Transfer files are not deleted reading.

MapFrame

MapFrame definition for Tyresö-connection.

MaxArea

Maximum rectangle size (m²)

If you try to use bigger area, you’ll get a warning. Use square meters.

Program

Program to be used in Tyresö-connection.

Swap

Swap XY-coordinates in DAT-file.

UnixFile

Use Unix-type DAT-file.
