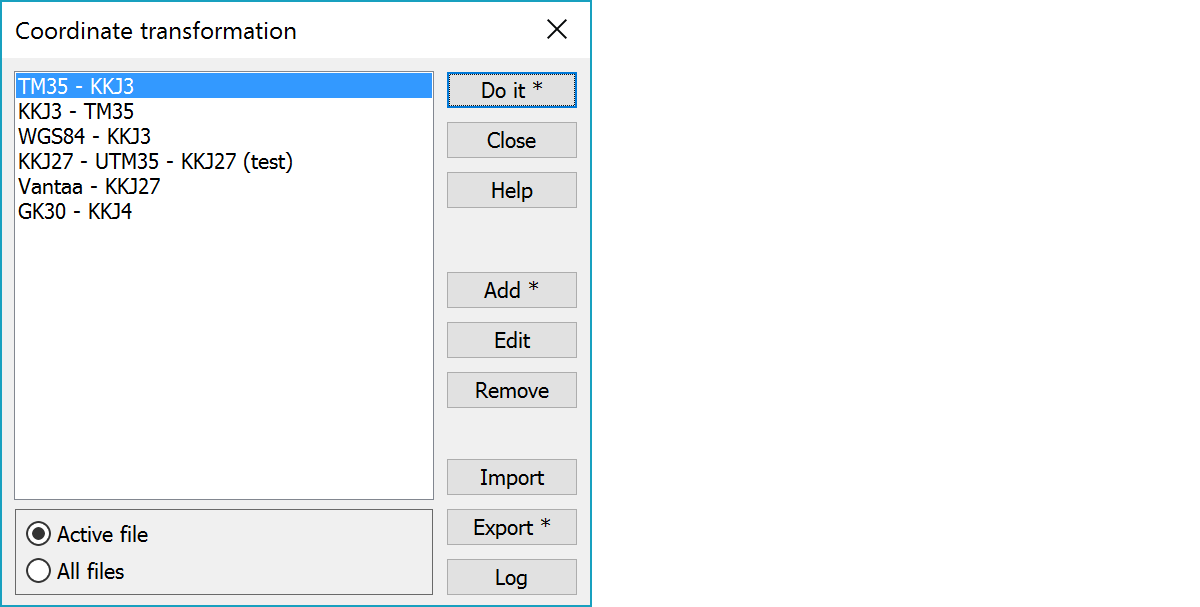

Coordinate transformation

A function to create and edit mathematical transformations to be used in other functions, like format conversion and GPS-measurement. List displays defined transformations, which can be either predefined functions or their combinations.

Executing function transforms the active element list file by default. With the Shift-key all element list files are transformed. With the Alt-key old coordinates are stored to the point attributes _X, _Y and _Z.

Active file / All files

Function transforms either the active file or all files in the element list.

Add

Add a new transformation. Hold down the Shift-key while selecting Add to make a copy of the selected transformation. You can move the selected line by Alt+arrow up/down.

Edit

Edit the selected transformation.

Delete

Remove the selected transformation from the list.

Import

Import a new transformation from a given file. The new transformation will be added in the list.

Export

Export the selected transformation into given file. With the Shift-modifier exports all transformations.

Log

Opens calculation log containing executed transformations.
