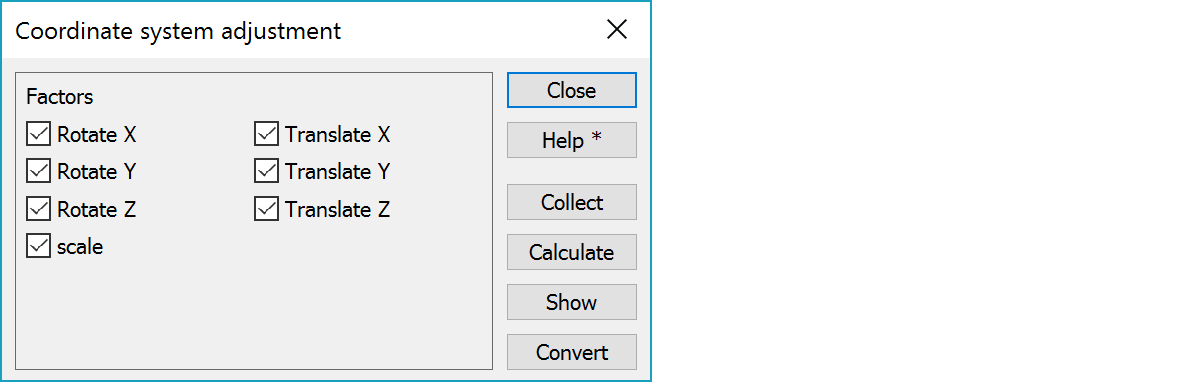

Coordinate system adjustment defines factors for transformation. Select common points in old and new coordinate system. The factors are saved in a file for possible later use.
Adjustment is calculated using least square method. You can see the residuals for every point after adjustment. You may change the settings and/or add/remove points and recalculate the adjustment.
Adjustment can be controlled using the factors. Factors can be abled/disabled individually. In normal case all factors are abled.
Select corresponding points. You can collect the points, calculate and return to Collect-function to add, remove, change points.
Calculation using the corrsponding points and selected factors. Calculation is done in an external software and there is a beep to tell about the ongoing calculation.
When calculation is finished, you can save the parameters in a file.
Calculation results show residuals for every point, maximum values and the calculated parameters. Results are shown in text editor and you can print or save the results.
Converting active file using the calculated parameters. File name is confirmed before conversion. After the conversion you can calculated the residuals. The first two files in element list are used.
Example of result file:
3D-system Oy 10.04.1999 12:09
Residuals
Nr dX dY dZ dXYZ
505 0.362 -0.075 0.223 0.432
350 -0.137 -0.207 0.059 0.255
510 -0.201 0.517 -0.084 0.561
119 0.112 -0.029 -0.257 0.282
350 -0.137 -0.207 0.059 0.255
max 0.362 0.517 0.257 0.561
Parameters
RotX RotY RotZ dX dY dZ scale
-61.3044 -2.2274 181.5254 44698.475 -39265.423 1306.691 1.000285
