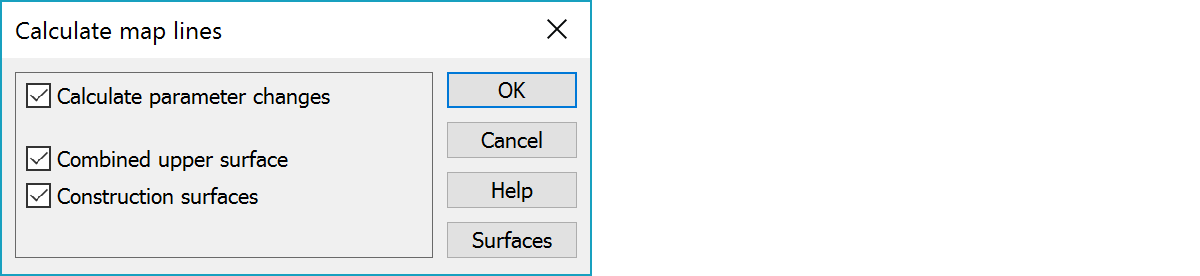

Calculate map Calculate mapTo calculate new breaklines using the cross section points. These lines are copied into a new vector file element in the main window. A center line will get the feature code 9150 (T3) and codes for other lines are incremented by one.
Calculates new points for all lines to those positions where the road construction parameter values are changed. The original terrain models are required for cross section calculation.
Calculates new surface 10, which consists upper surface in each cross section point. This surface represents final road upper surface and it can be used to visualize the new road as a three dimensional model.
Calculates each construction surface lines separately. Surfaces can be picked from file using the surface id and used for setting out and control measurements. Surfaces button opens list which allows selection of surfaces to calculate. Button also displays amount of selected surfaces in parenthesis.
