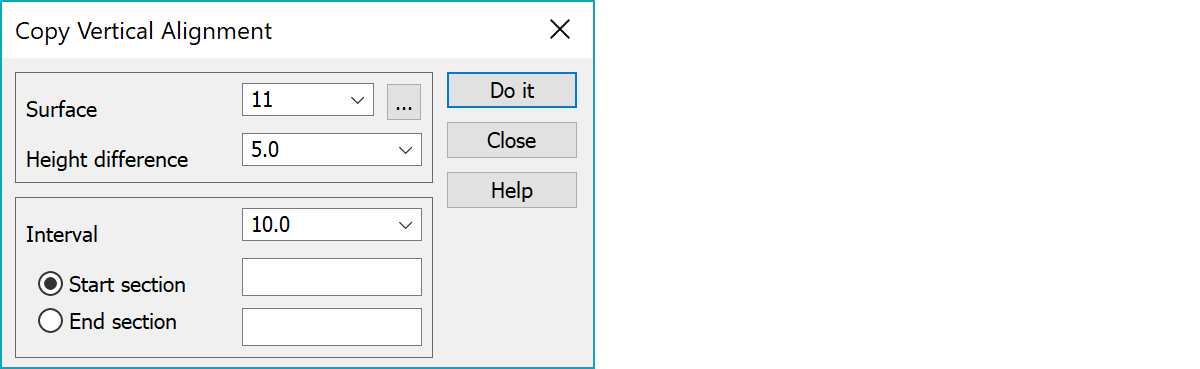

Copy vertical alignment

To copy vertical alignment as a normal profile. Arcs are divided to interval length straight sections.

Surface

Surface code for copied profile. Browse button opens code list and setting remembers ten last used values.

Height difference

Height offset for the vertical alignment.

Interval

Distance between points in profile.

Start / End

To copy only part of the road. Input the section numbers manually or use mouse. If using mouse, the section numbers will be rounded to the closest existing cross section. Default is to copy the whole road geometry.
