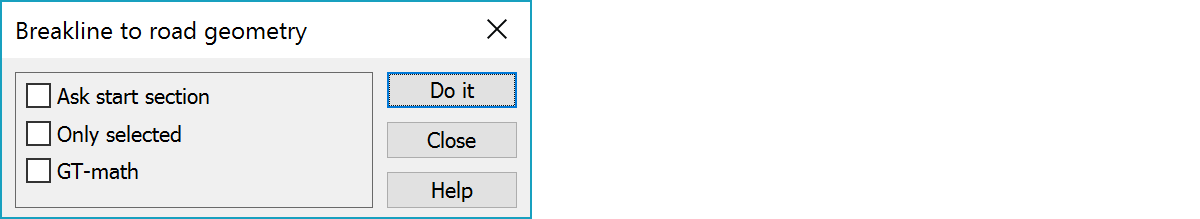

Breakline to road geometry

Active measurement line or all lines in the active vector file are converted road geometry files into the element list. A breakline can have also arcs. Circles are converted to four arcs. The files are named using active file name and line number. With the Shift-key only line number is used for file names.

Conversion error and warning messages are written to the format converter log file.

Ask start section

Asks starting section value for each converted line.

Only selected

Converts only selected vector file lines. The line is selected, if its first point is selected.

GT-math

Creates road alignment using GT-math.
