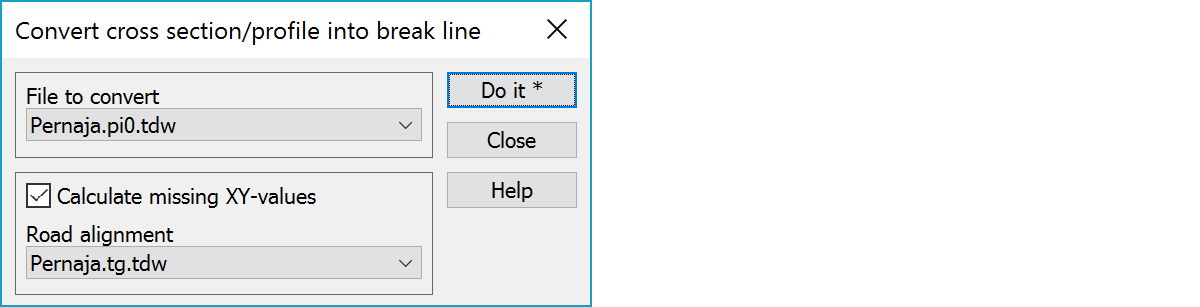

Convert cross section/profile into break line

Convert cross section file or profile into a break line. New break lines will be stored in a new vector file and renamed after the original file. All cross section will be saved in one file.

With the Alt-key asks width and creates vector file with cross section positions with their section values.

File to convert

The list will show all cross section files or profiles from the main window file element list.

Calculate missing XY-values, Road alignment

Setting calculates missing XY-coordinates for profile points using given road alignmennt as a reference line.
