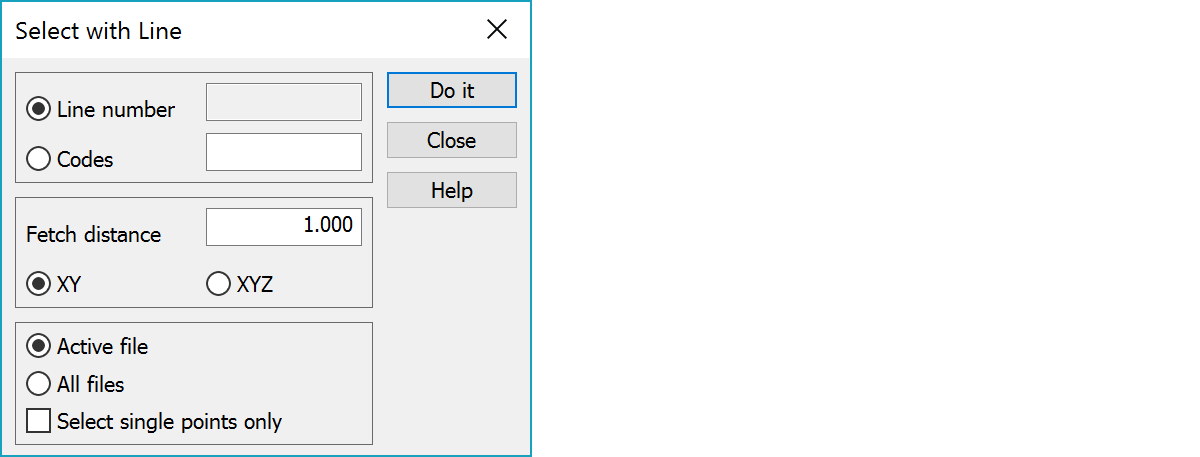

Select using line

Selecting points to group by using a line and giving a search distance.

Number of line

Click with the mouse the line you want to use as the reference. The number of the line is displayed in the field.

Codes

A line is used if line code is defined in this list. Use comma separated list to input several values. Input asterisk (*) to use all lines.

Search distance

The search distance from the given line. All points that are within the search distance are selected.

XY / XYZ

Select whether search distance is a horizontal or slope distance.

Only active file / All files

Use only active file or all vector files.

Select single points only

Select only single points (no lines) or all points (single points and line points).
