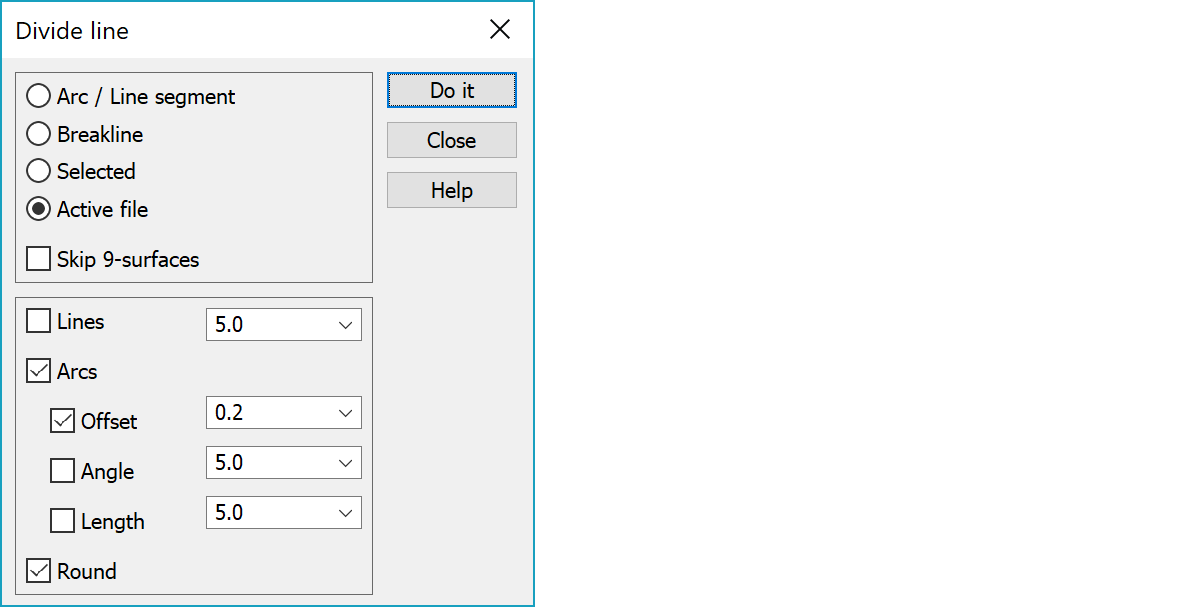

Divide line

Divides arcs and/or straight sections to shorter straight sections.

Arc / Line segment / Breakline / Selected / Active file

Determines if single arc, line segment, breakline or whole active file is converted. Single arc, line segment or breakline is selected normally with mouse.

Skip 9-surfaces

Skip lines with surface code 9.

Lines

Divides straight line sections with given length value. List remembers last ten used values.

Arcs, Offset, Angle, Length

Arc division can be made by three different parameters. Offset is a distance from arc to divided chord, angle is a divided central angle and length is a divided chord length. If more than one parameter is checked, parameter with smallest result angle is used. Each list remembers last ten used values.

Round

Rounds down the angle or the length to get equal size parts.
