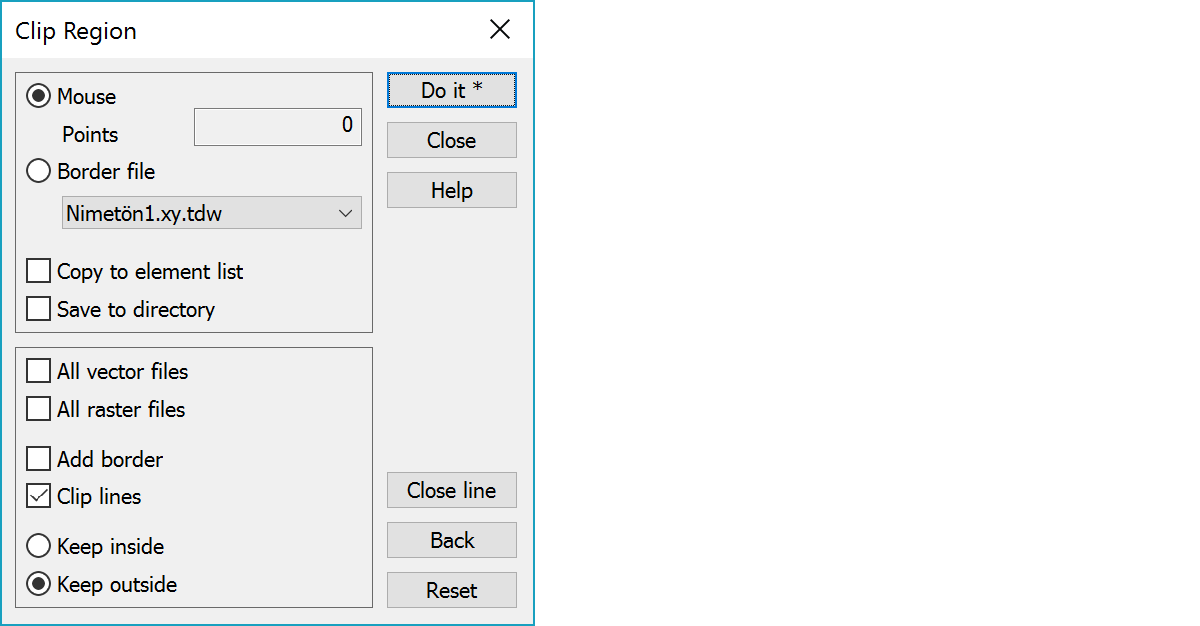

Clip region Clip regionClipping a file with a free form area. Points and lines remaining other side of the border line are cut off. You can use active file or all vector files. Raster files are clipped using bounding box around the given area. The border line can be added into the files modified.
Clips area using border line pointed by mouse. With the Alt-key cuts lines with the border line, but does not remove inside or outside part. Points is current amount of points in the border line.
Clips areas using closed breaklines in the given border file.
Copies clipped areas to new element list elements. Original files are not modified.
In copying inside and outside are handled differently. When copying inside parts, each border line forms a new file containing objects from all clipped files. New files are named using border file line numbers. When copying outside parts, each clipped element forms a new file where objects inside border lines are removed. New files are named by appending suffix '_outside' to the original element name.
With raster images inside clipping forms new files form each border line and each clipped element.
Clipped files are written to the subdirectory named after border file. Inside and outside handling uses same rules as in copying to the element list.
Function is applied to all vector and sounding files instead of just active file.
Function is applied to all raster files instead of just active file.
Adds border rectangle to the file as a breakline.
The part of a line remaining other side of the border is cut off and a new point is calculated at the clip edge.
Determines which side of the border line is left intact after clipping.
The first point of the line is repeated as the last point of the line so that the line is closed.
Deletes the last given point. If your search method was breakline, only the last section of the line is cancelled, not the entire line.
Removes all the given points and starts from beginning.
