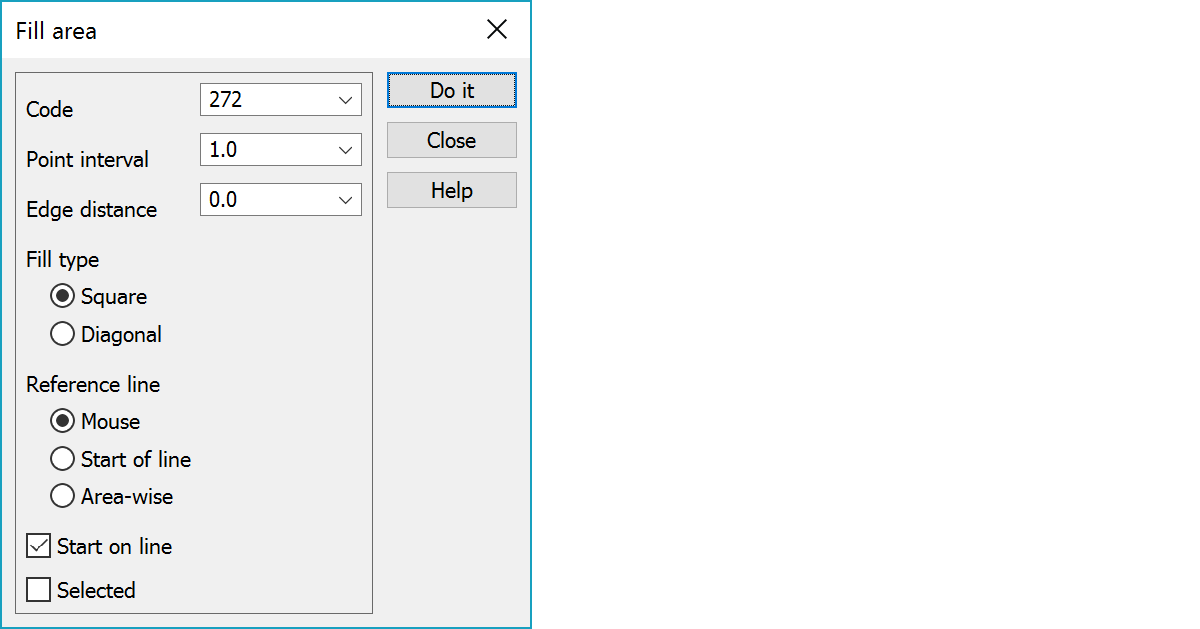

Fill area

Fills closed area with single point symbols. Function handles either all active file areas or just selected areas.

Code

Code for created points.

Point interval

Point interval. Separate forward and side offsets can be given with comma sepataror.

Edge distance

Point distance from area edge.

Fill type

Fills area as an ortogonal or diagonal hatch.

Reference line

Point row direction can be give either by mouse or from breakline. Start of line uses first two point of the border line as a point row reference line. Area-wise searches two point line with same line number as the area border line and uses it as a reference line.

If two same points are gives as a reference line with mouse, points are creates along coordinate axis.

Start on line

Starts first point row exactly on the reference line.

Selected

Handles only selected areas.
