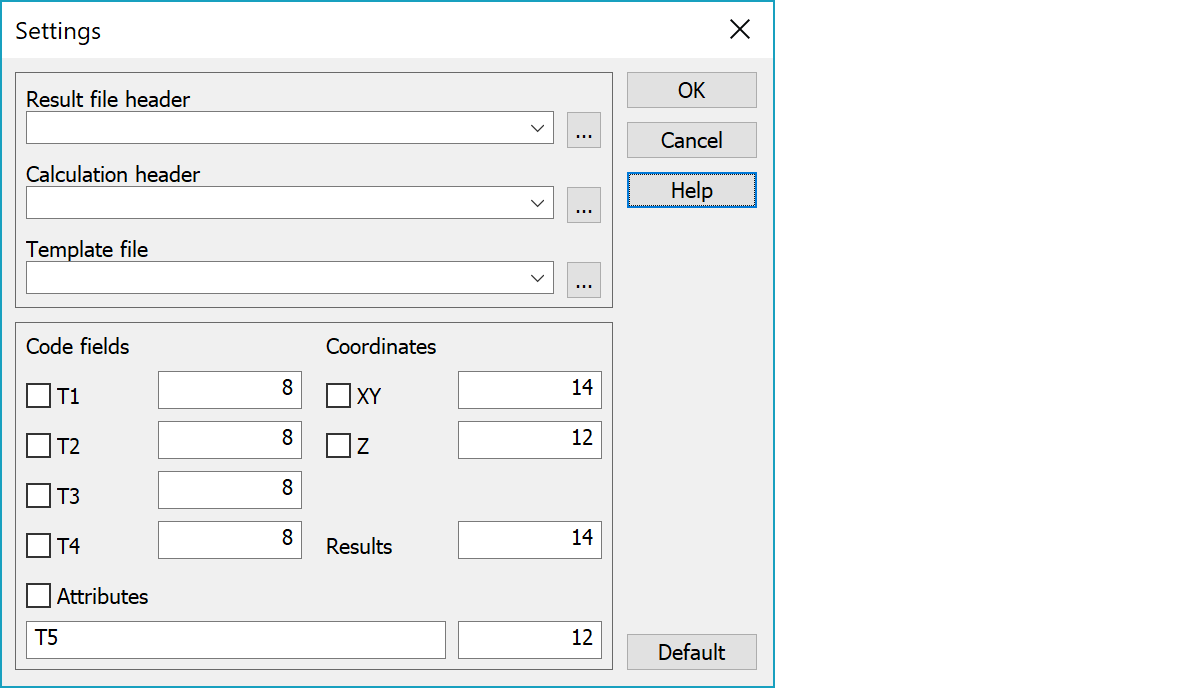

Result settings

Calculation result file formatting settings.

Result file header

Common header file. The list remembers last 10 used files.

Calculation header

Calculation specific header file. The list remembers last 10 used files.

Template file

Template file settings. The list remembers last 10 used files.

Code fields T1 - T4

Settings for writing code fields T1-T4. Numeric values are field widths in the result file.

Attributes

Settings for writing attributes. Attributes are defined as a comma separated list (e.g. DIA, MAT). Numeric value is field width in the result file. Attribute definition can contain also formatting (e.g. DIA%.2).

Coordinates

Settings for writing XY- and Z-coordinates. Numeric values are field widths in the result file.

Results

Width of the calculation result fields.

Default

Updates the settings with factory default values.
