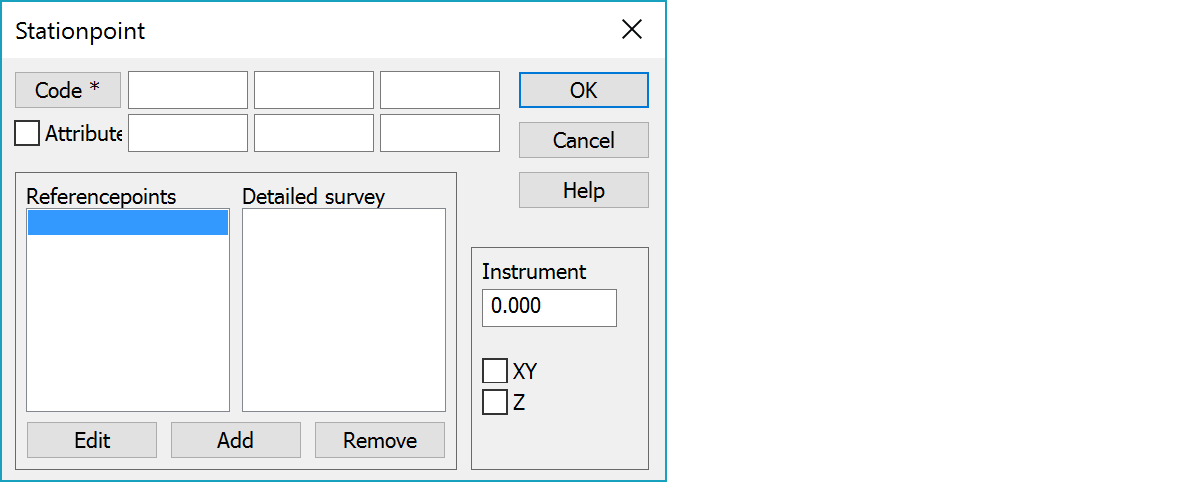

Viewing and editing the information of a station point. The dialog shows all the information of the station point and all the reference and mapping points associated to that station.
Edit station point instrument height.
You can limit the coordinates of the known points used in the calculation. Applies only to the known station points. If you choose for example only XY, you don’t use the known point height (Z) but you calculate a new height for the station point by using reference observations.
Show in the list reference point (or mapping point) and choose edit or double click from the list.
You can add a new reference point or mapping point. Before adding a point, show the list in which you want the point added.
Delete a reference or mapping point that has been selected from the list. All observations made to that point are also deleted.
