Calculation parameter selection. Offset (*_OFFSET) and addition (*_PLUS) parameters affect only, when they are selected visible in the first tab page.
Restores original parameter order.
Moves parameter up or down in the list. Works also with arrow keys with the Alt-key.

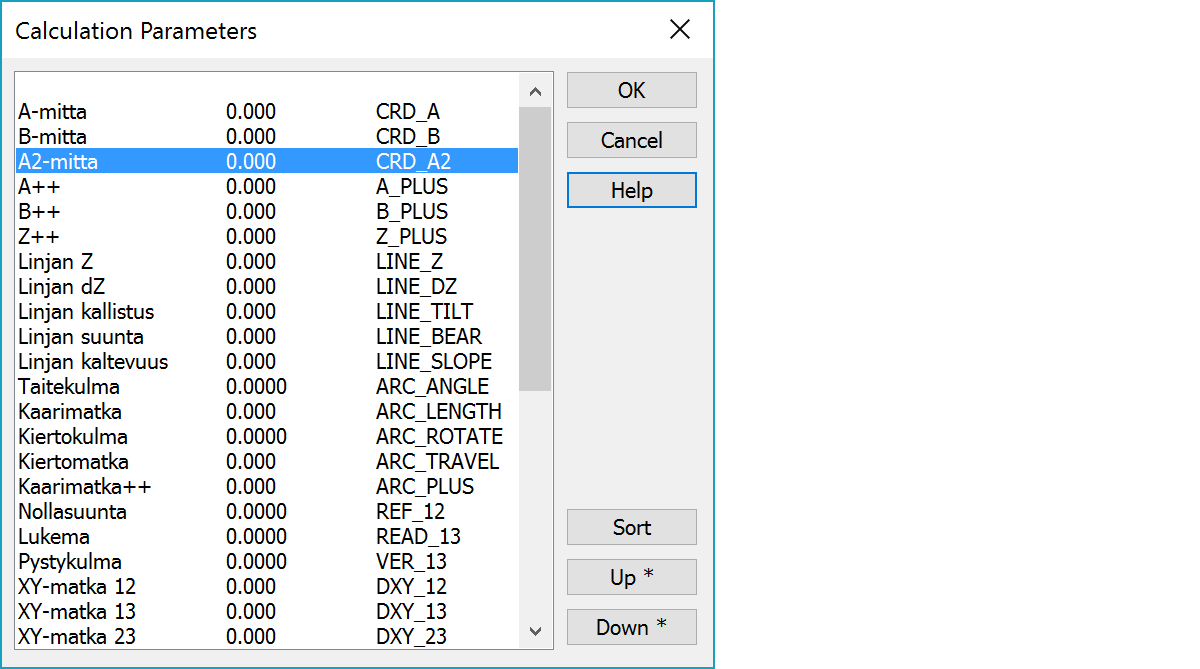

Id tag in parenthesis after the parameter name is attribute name used to store result to point. Not all of the parameters are available in all calculation functions.
| Name | Id | Description |
|---|---|---|
| Empty | the field is empty | |
| A-distance | CRD_A | point 3’s A-distance on line 1-2 |
| B-distance | CRD_B | point 3’s B-distance on line 1-2 |
| A2-distance | CRD_A2 | point 3’s a2-distance on line 1-2 |
| A-section | A_SECT | horizontal distance from the previous point of the line |
| A2-section | A2_SECT | horizontal distance from the next point of the line |
| A-offset | A_OFFSET | value added to the A-distance |
| B-offset | B_OFFSET | value added to the B-distance |
| Z-offset | Z_OFFSET | value added to the height |
| A++ | A_PLUS | addition to A-distance after every Save |
| B++ | B_PLUS | addition to B-distance after every Save |
| Z++ | Z_PLUS | addition to Z-coordinate after every Save |
| Line z | LINE_Z | height of line at given position |
| Line dz | LINE_DZ | projected height difference to point 3 of line 1-2 |
| Side slope | LINE_TILT | slope from reference line 1-2 to point 3 |
| Line bearing | LINE_BEAR | line slope in projected position |
| Line slope | LINE_SLOPE | line slope in projected position |
| Arc angle | ARC_ANGLE | angle between lines 1-2 and 1-3 |
| Arc length | ARC_LENGTH | linear distance across the arc, cord distance 1-3 |
| Rotation angle | ARC_ROTATE | clockwise angle between lines 1-2 and 1-3 |
| Rotation travel | ARC_TRAVEL | linear distance across the clockwise arc |
| Arc dist++ | ARC_PLUS | addition to arc distance after every Save |
| Zero bearing | REF_12 | bearing angle, the given reference angle |
| Reading | READ_13 | measured value, which you add to zero bearing |
| Vertical angle | VER_13 | vertical angle from point 1 to point 3, positive upwards |
| XY-distance 12 | DXY_12 | horizontal distance between points 1 and 2 |
| XY-distance 13 | DXY_13 | horizontal distance between points 1 and 3 |
| XY-distance 23 | DXY_23 | horizontal distance between points 2 and 3 |
| dZ 12 | DZ_12 | height difference; point 1 to 2 |
| dZ 13 | DZ_12 | height difference; point 1 to 3 |
| dZ 23 | DZ_12 | height difference; point 2 to 3 |
| Bearing 12 | BEA_12 | bearing angle point 1 to 2 |
| Bearing 13 | BEA_13 | bearing angle point 1 to 3 |
| Bearing 23 | BEA_23 | bearing angle point 2 to 3 |
| XYZ-distance 12 | DXYZ_12 | slope distance between points 1 and 2 |
| XYZ-distance 13 | DXYZ_13 | slope distance between points 1 and 3 |
| XYZ-distance 23 | DXYZ_23 | slope distance between points 2 and 3 |
| Slope 12 | SLOPE_12 | slope from point 1 to point 2 |
| Slope 13 | SLOPE_13 | slope from point 1 to point 3 |
| Slope 23 | SLOPE_23 | slope from point 2 to point 3 |
| C-dist | C_DIST | shortest ortogonal 3D distance from point 3 to reference line 1-2 |
| S-dist | S_DIST | three dimensional distance from point 1 to point 3 along the line |
| S2-dist | S2_DIST | three dimensional distance from point 2 to point 3 along the line |
| S++ | S_PLUS | addition to S-distance after every Save |
| X-coordinate | CRD_X | point 3’s X-coordinate |
| Y-coordinate | CRD_Y | point 3’s Y-coordinate |
| Z-coordinate | CRD_X | point 3’s Z-coordinate |
